Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: BenYuan
Model Number: BN-CW20CW/VIP200
Type: IP Camera
Style: Bullet Camera
Sensor: CMOS
Technology: NetWork
Special Features: Waterproof / Weatherproof
product name: license plate number recognition camera
Image Sensor: 1/2.7" 2.0MP CMOS sensor
Processor: Ambarella A5 processor
Resolution: 1920*1080@30fps
Lens: 5-50mm 3.0Megapixel Lens
Video compression: H.264 high profile,M-JPEG
IR LEDs: 4*White light array LED or IR array LEDs optional
Dual streaming: Support
Certificate: CE,FCC,ROHS
Warranty: 24 Months
Packaging & Delivery
| Packaging Details: | 10pieces / Carton
Carton Size: 79*40*37cm
Net Weight per carton: 15.30KG
Gross Weight per carton: 16.5KG
Volume Weight per carton: 23.4KG |
|---|
| Delivery Detail: | 7-8working days for 100pieces |
|---|

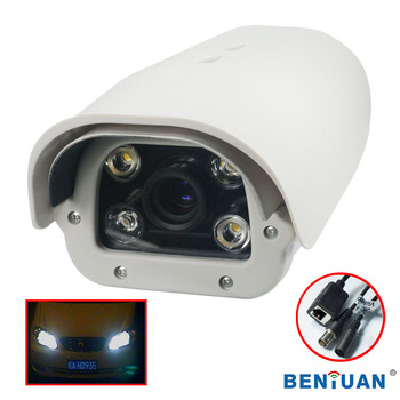

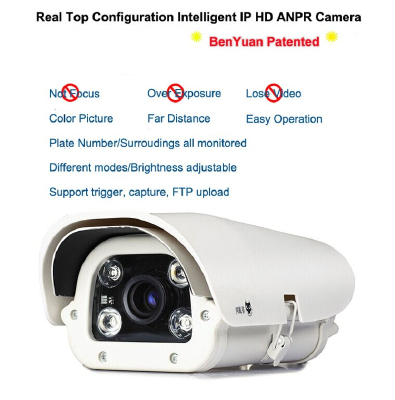

BenYuan Patented LPR ANPR Camera 2.0Megapiexls 1080P IP Highway and Parkinglot License Plate Number Recognition Camera
Description:
The HD LPR IPC series adopts professional CMOS image sensor and Ambarella DSP chip, providing good color reproduction and influent video with H.264 format, and it can work at night with IR LEDs. ONVIF2.4 protocol is supported, which can seamlessly access the professional management platform and NVR device. The special LPR software interface is easy to do in license plate capturing field.
Key Features:
1) Professional image sensor, Ambarella DSP. Full real time 2.0MP at 30FPS
2) Good color reproduction and excellent video quality.
3) 3.0Megapixels 5-50mm vari-focal lens
4) ONVIF2.4 protocol to bring the convenience for the back end device and platform software access.
4) Free client software for record, view and playback, WAN network through by NAT supported.
5) Vehcile speed 0~180km/h adjustable
6) Fan and Heater Intelligent intelligent temperature control system
6) Whitel light LED array to fit the LPR field, some countries support IR array LEDs optional
7) Support trigger alarm, plate number capturing, and upload captured photos to FTP severs
8) Open SDK , multi network connection supported.
9) Support customized LPR cameras and function for big projects
Technical Specification:
| Specification |
| Product Name | Megapixel LPR IP Camera |
| Model | BN-CW20CW/VIP200 |
| Video |
| Image sensor | 1/2.7" 2.0MP CMOS sensor |
| Processor | Ambarella A5 processor |
| Resolution | 1920*1080 |
| Video output | Network and CVBS |
| Compression | H.264 high profile,M-JPEG |
| FPS | 1920x1080/1-30fps |
| 1280*960/1-30fps |
| 1280*720/1-30fps |
| Compressed code | 256K-12Mbps |
| Dual streaming | Support |
| 3D DNR | Support |
| Function |
| Network interface | RJ45 ethernet port,10/100M TCP/IP/UDP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP supported |
| LPR model | Vehicle speed, environment brightness adjustable |
| Common |
| Day/night | Auto switching (IR model) |
| LED | White light array LED |
| Lens | 5-50mm Megapixel Lens |
| Power supply | DC12V(±10%) /POE( IEEE802.3at) |
| Power dissipation | 14W(LED and heater works) |
| Work temperature, humidity | -10℃~55℃,10%~90% RH |
| Temperature control | -5℃ heater(optional), 45℃ fan works |
| Waterproof | IP66 |
| Dimension | 300x125x110mm |
| Weight | 1700g |
How to order from us
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms
Ali Pay, T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 20,000USD, we should get 100% payment before production;
If order value more than 20,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.
Lead Time:
1.Sample order can be delivered from our factory in 3 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
a.) For fast and safe delivery, we cannot deliver to P.O. Box number. Please provide physical address and contact phone number.
b.) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility with your country's customs office to estimate what these additional costs will be prior to buying.
c.) Transit time varies with different shipping methods.
OEM/ODM Service
1. If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels, boxes, and in the manuals free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
