Quick Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: Benyuan
Model Number: BN-AHD130EV/IR
Type: Analog Camera
Style: Dome Camera
Sensor: CMOS
Technology: Infrared
Special Features: Vandal-proof
Processor: High performance NVP2431H ISP processor
Image Sensor: 1.3MP:1/3" AR0130 CMOS Sensor
Output Resolution: 1280(H)x 960(V)
Lens: 2.8-12mm 2.0MP Varifocal Lens
IR distance: 35-40M (42pcs IR LEDs)
D/N Mode: IR cut Auto switching
Signal System: PAL/NTSC
Video Standard: AHD and CVBS Standard
White Balance: Auto White Balance
Power Supply: DC12V
Packaging & Delivery
| Packaging Details: | Color Box Package
Product Demension: 140*105mm Packing Demension: 186*175*134mm Gross Weight With Package: 1.5 KG |
|---|
| Delivery Detail: | Within 3-10 working days |
|---|
Product Description

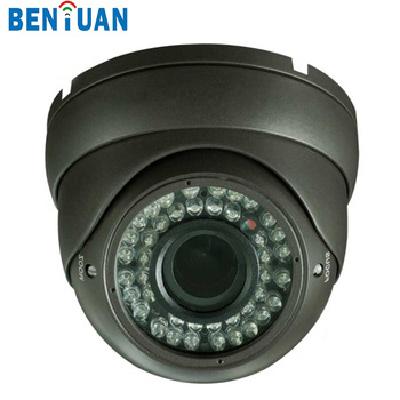

Benyuan Vandalproof Dome CCTV 1.3MP AHD Camera with Varifocal Lens 42 PCS IR LED
The BN-AHD130EV/IR is a 960p HD surveillance camera (AHD CCTV) with built-in infrared night vision for day / night video surveillance. The BN-AHD130EV/IR is an indoor dome-type camera. This camera has a Varifocal 2.8-12mm lens, which is perfect to ceiling mount in the corner or small to medium sized rooms. This HD security camera uses 1/3" AR0130 CMOS Progressive Scan image sensor that captures 960p resolution ( 1280 x 960 / 1.3 megapixel ) video using RG59 coaxial cable. As with all AHD cameras, they must be used with a AHD compatible DVR.
This 960p camera uses 42 PC infrared LEDs, which allow the camera to operate in low light and zero light environments. The smart IR technology enables the camera to automatically adjust the intensity of the infrared lighting based on the distance objects are located from the camera. This camera is powered via a 12V DC power supply.
For environments with challenging lighting conditions, such as bright back lighting, the BN-AHD130EV/IR uses Digital Wide Dynamic Range Enhancement. Digital WDR works by combining the brightest part of the image with the darkest part to create a single high detailed image.
BN-AHD130EV-IR Features
1/3" AR0130 CMOS Progressive Scan CMOS Image Sensor
9600p (1280 x 960) HD Video Resolution
Compatible AHD DVRs (analog high definition)
Varifocal 2.8-12 mm 2.0MP Lens
42PCS IR LEDs for Low Light & Zero Light Video Surveillance
White dome base
Indoor Only Dome Enclosure
Ceiling mount installations
Infrared for low light and zero light applications
0.01 LUX without IRs / 0 LUX with IRs on
Digital WDR / Digital Wide Dynamic Range
12V DC Power Supply
| Specification |
| Product Name | 1.3MegaPixel IR Vandalproof Dome HD AHD Camera |
| Model No. | BN-AHD130EV/IR |
| Video |
| System | High performance NVP2431H ISP processor |
| Sensor | 1.3MP:1/3" AR0130 CMOS Sensor |
| Output resolution | 1.3 MP :1280(H)×960(V) |
| D/N Mode | IR cut Auto switching |
| Minimum Illumination | 0.000LUX/F1.2(Led on) |
| Effective Pixel | PAL : 1280*960@25fps |
| NTSC : 1280*960@30fps |
| Signal System | PAL/NTSC |
| Video Standard | AHD and CVBS Standard |
| Video Output | 1CH AHD HD/CVBS Standard Singal Output(Switchable) |
| Max Transmission Distance | Common 75-5 cables can be up to 500m |
| Lens and IR |
| Lens | Vari-focal 2.8-12mm Megapixel lens |
| IR distance | 35-40M (42pcs Φ5 IR LEDs) |
| Function |
| Shutter Speed | 4/25s-1/45,000s |
| BLC | Off/Low/Medium/High/Highest |
| White Balance | Auto White Balance |
| HLC | support |
| Operation Temperature | -10°C~55°C |
| Power Supply | DC12V |
| Dimension | Φ140*105mm |
| Weight | 540g |
Packaging & Shipping
Color Box Package
Product Demension: 140*105mm Packing Demension: 186*175*134mm Gross Weight With Package: 1.5 KG
Accessories Included:
Instruction Manual, Screw Fittings, Guarantee Card, Desiccant.
Optional Functions & Accessories
DC 12V Power Supply
FAQ
How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ:
1.For the sample t order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 100pcs/model, Special cases can be negotiated
Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If order value less than 20,000USD, we should get 100% payment before production;
If order value more than 20,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.
Lead Time:
1.Sample order can be delivered from our factory in 3 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping :
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping
a.) For fast and safe delivery, we cannot deliver to P.O. Box number. Please provide physical address and contact phone number.
b.) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility with your country's customs office to estimate what these additional costs will be prior to buying.
c.) Transit time varies with different shipping methods.
OEM/ODM Service
1. If the total order quantities are above 50pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels, boxes, and in the manuals free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy:
We provide 2 years warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
